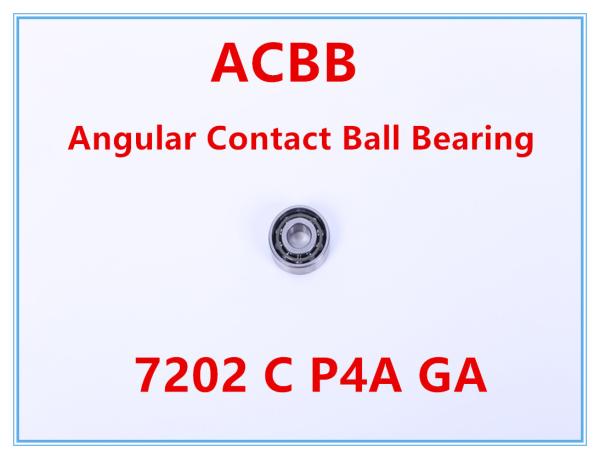

7202 C P4A GA Angular Contact Ball Bearing

Name: 7202 C P4A GA Angular Contact Ball Bearing
Brand: ACBB
Price: 1 USD

Quality 7202 C P4A GA Angular Contact Ball Bearing wholesale

Brand Name : ACBB

Model Number : 7202 C P4A GA

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 50 PCS

Packaging Details : Company brand packaging.

Product name : Angular Contact Ball Bearing

Product model : 7202 C P4A GA

Characteristic : High speed and high rigidity

Rotational speed : 40000RPM-45000RPM

Angle : C/CD/ACD/AC/A5E

Preload : Light preload

Rolling Body : Steel Ball

Holder : Nylon holder

Contact Now

Angular contact ball bearing 7202 C P4A GA (in addition, DB, DT, TBT, QBC and other matching methods); The angles include C angle, ACD angle, A5 angle, E angle, etc. It is mainly used in CNC machine tool spindles, high-speed motors and high-speed electric spindles. The operating speed reaches 40000 to 45000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

72 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)			(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
7200C	10	30	9	5.85	2.90	56000	85000	7000	110000	25	92	198
7200AC	10	30	9	5.60	2.80	50000	75000	60000	90000	31	139	312
7201C	12	32	10	7.65	3.90	50000	75000	63000	95000	35	124	264
7201AC	12	32	10	7.35	3.75	45000	67000	56000	85000	47	191	420
7202C	15	35	11	9.65	5.00	45000	67000	56000	85000	47	165	347
7202AC	15	35	11	9.30	4.80	40000	60000	48000	70000	65	256	555
